MATA — Toward the First Closed-Loop AO on the LOT
Building on this AO development effort, TARA is integrating and commissioning MATA (Module for Adaptive Telescope Astronomy at Lulin), a compact, in-house adaptive optics prototype built specifically for the Lulin One-meter Telescope (LOT). MATA combines a fast tip/tilt mirror, a deformable mirror, and a high-speed, low-noise wavefront sensor optimized for the red optical bands, driven by an in-house real-time control system targeting a loop latency of about 2 ms. Successful commissioning will make the LOT the first telescope in Taiwan to achieve on-sky closed-loop AO correction, establishing a domestic capability to define, design, integrate, and verify astronomical AO systems — a foundation for future high-resolution instrumentation on TP2m and collaboration with Subaru and GMT.
TARA AO Laboratory
The TARA engineering team has chosen the development of adaptive optics (AO) technology as our first step, collaborating on projects such as the Subaru ULTIMATE and GMT AO instruments. With support from ASIAA and IANCU, we are establishing the AO laboratory by focusing on simulations, wavefront reconstruction algorithms, wavefront sensor design, and system controller development as initial priorities. These efforts are designed to advance AO capabilities and support future astronomical observations in Taiwan.
What is AO?
AO is a technology used in astronomy and other optical applications to correct distortions caused by the Earth's atmosphere, allowing telescopes to produce sharper and more detailed images of celestial objects. By using a deformable mirror and wavefront sensors, AO systems can measure and compensate for atmospheric turbulence in real-time. This correction dramatically improves image resolution, enabling ground-based telescopes to rival the clarity of space-based observatories. Adaptive optics is essential for studying faint or distant objects, such as exoplanets, black holes, and distant galaxies, pushing the boundaries of our understanding of the universe.

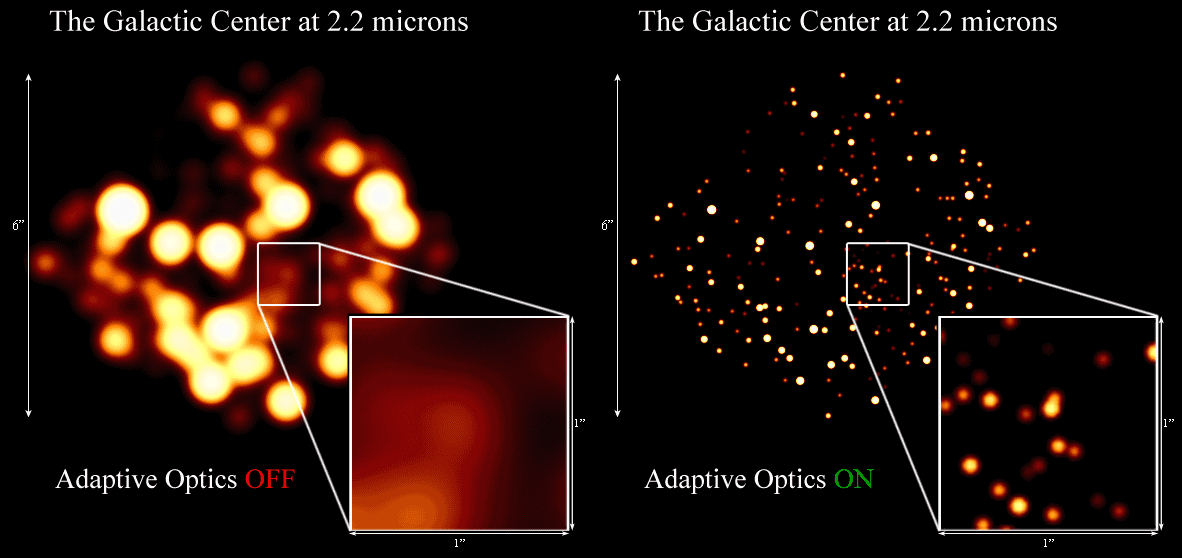

Image credit: UCLA Galactic Center Group
Simulations and Algorithms

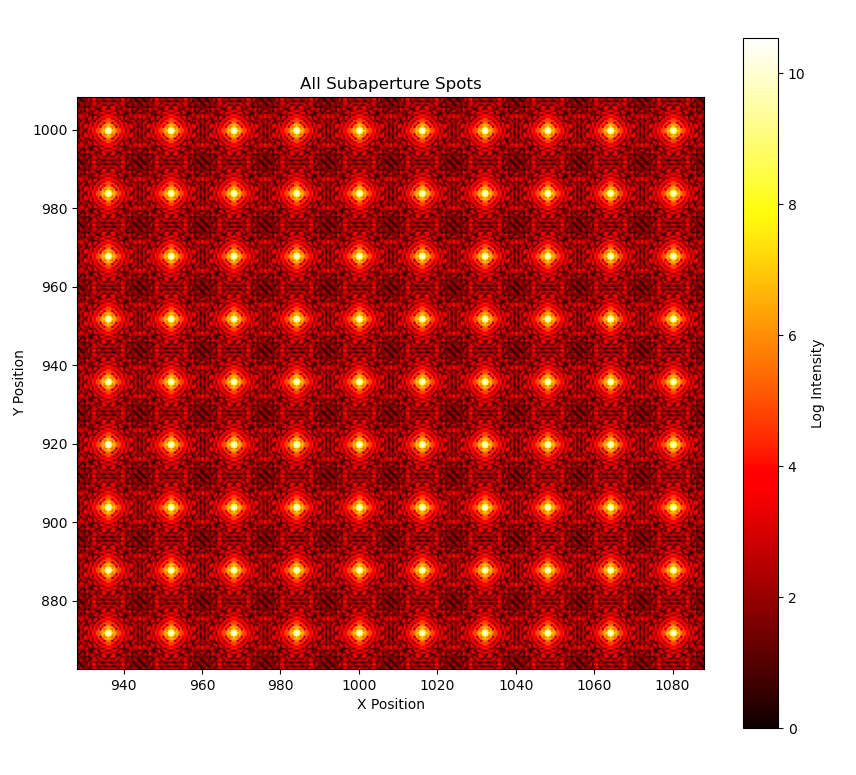

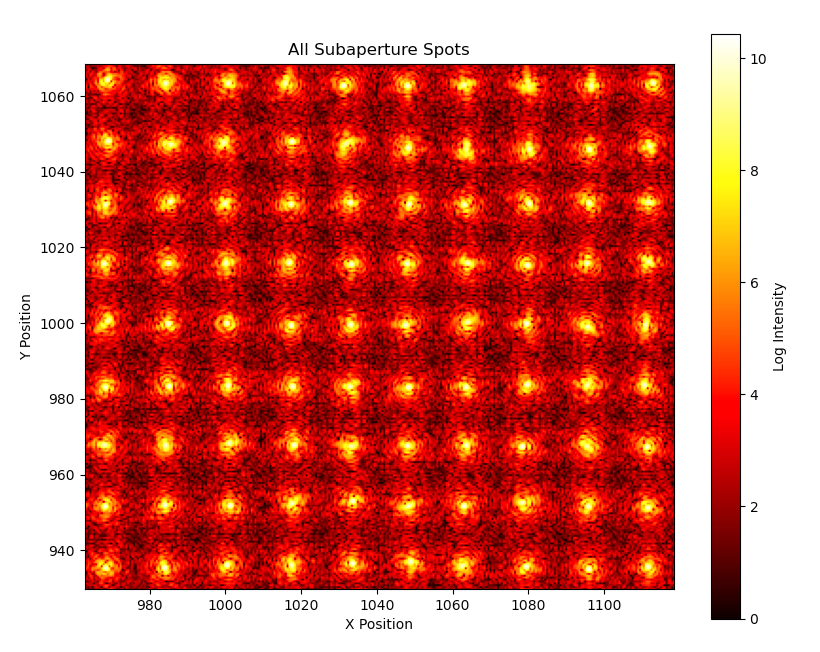

We are developing programs to simulate the effects of wavefront distortions caused by atmospheric turbulence. To reconstruct the wavefront, we have designed an algorithm based on the principles of the Shack-Hartmann wavefront sensor. As illustrated in the figures below, the subapertures of the Shack-Hartmann sensor detect spot positions with and without turbulence. By measuring the relative displacement of these spots, the algorithm reconstructs the original wavefront, enabling corrections to improve image quality.

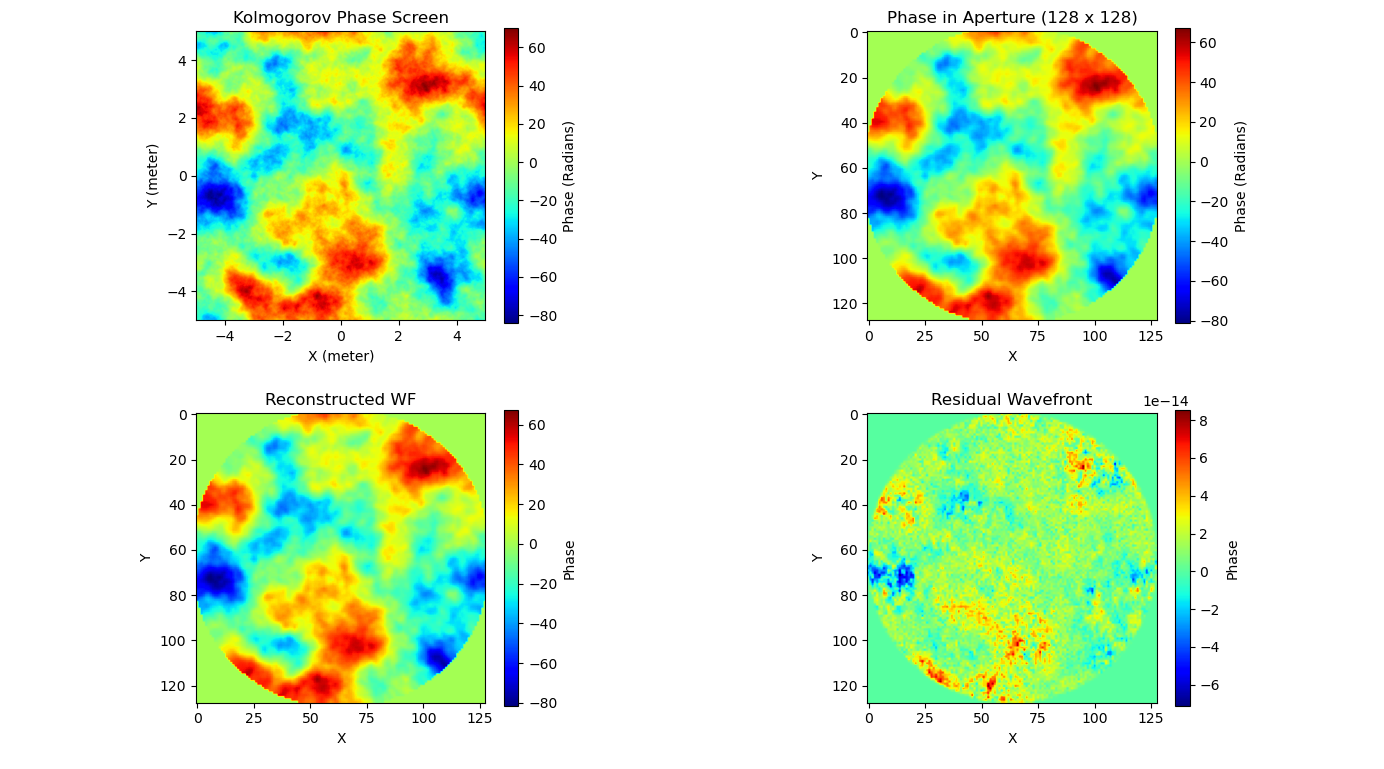

The reconstruction process involves calculating the slopes of the distorted wavefront from the measured spot displacements and using this information to compute the phase errors across the aperture. These phase errors are then compensated using a deformable mirror or other correction mechanism, effectively reducing distortions and restoring sharpness to the observed image. This approach is critical for enhancing the resolution of ground-based telescopes, allowing them to rival or even exceed the imaging quality of space-based observatories.
